Pre Order

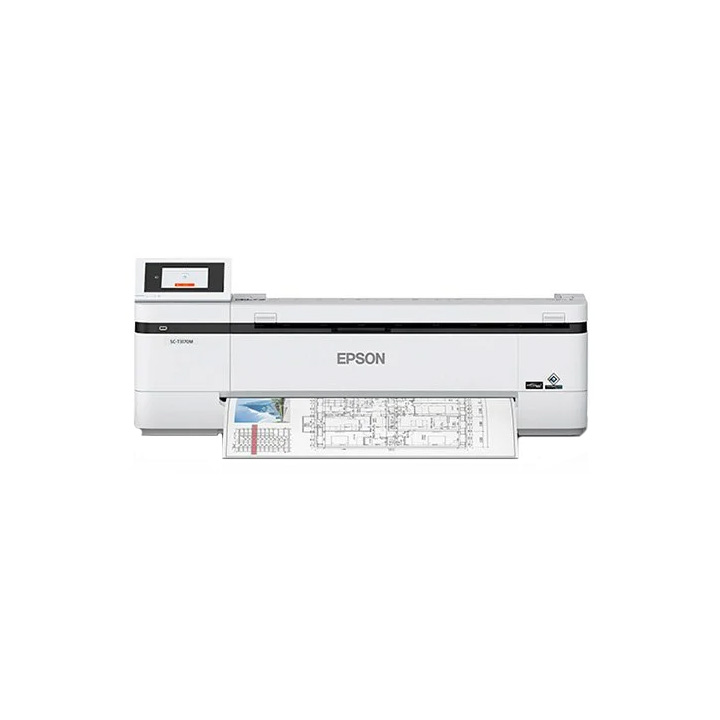

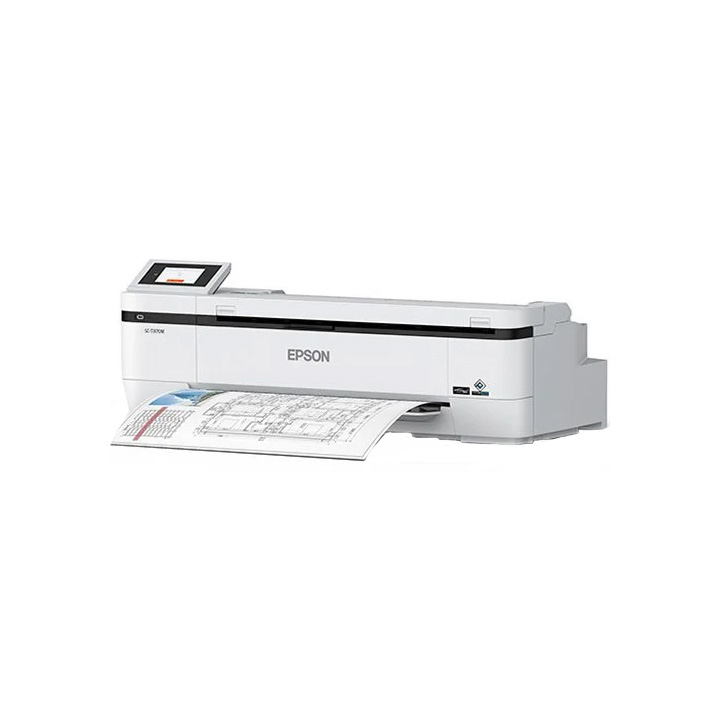

Epson SureColor SC-T5130M

Go Big on Possibilities and Precision.

Take your ideas to a bigger scale with greater performance and precision with the Epson SureColor SC-T5130M printers. With PrecisionCore printheads and UltraChrome XD2 ink to bring about fast printing speeds, enjoy a seamless work process and top-class accuracy in every print. Showcase your ideas and plans in a big way right down the finest detail.

- - - Impressive accurate and sharpness at outstanding speeds
    - Compact and user-friendly design
    - Multi-function capabilities with in-built scanner
    - High productivity with seamless scan-to-print function
    - Print width of up to 36”

Available for Pre-Order

Category: CAD Printers Brand: Epson

PRECISIONCORE PRINTHEAD TECHNOLOGY
Equipped with the next-generation PrecisionCore printhead technology, piezo elements are used to mechanically eject ink from the SureColor T-series’ PrecisionCore Micro TFP printhead, producing incredibly precise line detail, sharp text and photographic quality graphics. T-series’ industry-leading output quality and accuracy will provide a reliable and productive long-term operation.

For SC-T5130M, the PrecisionCore Technology and Variable Size Dot Technology allow the ink droplets to be controlled to the finesse of 3.7 picolitres.

Impressive Print Speed
Get A1 printouts in 31 seconds.

Nozzle Verification Technology
Print without interruptions with the advanced built-in Nozzle Verification Technology (NVT). This technology monitors nozzle health and adjusts print quality automatically without interruption, even during printing.

COMPACT, USER-FRIENDLY DESIGN

Control at Your Fingertips
A 4.3 inch touch panel on the T-series gives you the convenience of an easy setup and a PC-less operation that just makes things extra efficient.

Small Footprint
Sleek and minimally designed, the Epson SureColor SC-T5130M comes with a comfortable size that fits into tight workspaces effortlessly.

TRUSTED PRODUCTIVITY

Wireless Connectivity
The Epson SureColor SC-T5130M is integrated with Wi-Fi and Wi-Fi Direct, making it convenient to print right from smart devices from anywhere in the office. The Wi-Fi Direct function acts as an access point, allowing devices to connect directly to the printer without a router. Additionally, the T-series printers come equipped to allow direct wireless printing from any Apple devices through Apple AirPrint*, without the need for any additional drivers.

Epson Cloud Solution PORT
Epson Cloud Solution PORT is a cloud-based solution for Epson end users. This software provides users with the status of the connected printer and alerts for troubleshooting if required. The Production Monitor allows users to visualise printer operational status, track usage and print job cost, conveniently from their PC or smart devices.

Seamless Scan to Print
Scan and enlarge your printouts in just four easy steps without needing to connect to a computer.

What’s in the box:

Printer
Printer Stand^*2
Initial Ink Cartridge
AC Power Cable
Setup Guide
Software CD-Rom,
Maintenenace Box

Specifications of Epson SureColor SC-T5130M

Printing:

Print Head:PrecisionCore TFP PrintheadNozzle Configuration:3,200 nozzles (800 nozzles x 4 channels x 1 head)Maximum Print Resolution:2,400 x 1,200 dpiMinimum Ink Droplet Size:3.7 plPrint Speed:CAD (A1): 31 secondsLine Accuracy:±0.1% or ±0.26 mmMinimum Line Width:0.07mm^*1 (0.02mm^*2)

Paper Handling:

Media Thickness:Roll: 0.05 mm to 0.21 mm, ASF/Cutsheet: 0.12 mm to 0.27 mmSide Margin:3mmAuto-Sheet Feeder:A4 to A3Maximum Roll Diameter / Weight:2" core, Max 119 mm/5.9kgPaper Width:Roll: 297mm - 914 mm Cutsheet: 210 mm - 914 mmPaper Capacity for ASF:50 sheets plain paper / 5 sheets special media

Consumables:

Black Ink Cartridge:50ml: C13T40A100 80ml: C13T40B100Cyan Ink Cartridge:26ml: C13T40A200 50ml: C13T40B200Magenta Ink Cartridge:26ml: C13T40A300 50ml: C13T40B300Yellow Ink Cartridge:26ml: C13T40A400 50ml: C13T40B400Maintenance Box:C13S210057Auto Cutter Spare Blade:C13S210055

Printer Width:

Printer Width:36"

Electrical Specifications:

Rated Voltage, Frequency and Current:AC 100 to 240V, 50/60Hz, 1.4AElectric Power Consumption:Operating: Approx. 26W Ready: Approx. 12W Sleep: Approx. 2.0W Power Off (Stand by): Approx. 0.2W

Warranty:

Warranty:3-years Warranty

Ink System:

Ink Type:UltraChrome XD2 Pigment InkColours:Cyan, Magenta, Yellow, Black

Scanning:

Sensor:CISLight Source:RGB LEDOptical Resolution:600 dpiScan Speed (200dpi):1.5 ips (Colour) / 4.5 ips (Mono)Minimum Document Size:148 mm x 148 mmMaximum Document Size:914.4 mm x 2,720 mmScan Formats:JPEG, PDF (Single Page), PDF (Multi Page), PDF/A (Single/Multi), TIFFScan to Destination:Scan to Network Folder, Scan to FTP Server, Scan to Email, Scan to Memory Device

Copy:

Copy Speed:77 sec (Colour) / 60 sec (Mono)Scaling:25 to 400%Maximum Copies:99

Environmental Conditions:

Temperature:Operating: 10°C to 35°C, Storage: -20°C to 40°CHumidity:Operating: 20 - 80% (No Condensation), Storage: 5 - 85% (No Condensation)Sound Pressure:Operating: Approx. 50dB(A)Sound Power:Operating: Approx. 6.6B(A)

Printer Dimensions:

Dimension with Stand (W x H x D):1,268 x 975 x 696 mmWeight With Stand:54.8 kg

Options:

Roll Feed Spindle (36"):C12C933131Printer Stand (36"):C12C933091Document Carrier Sheet (A0):C12C936461Carrier Sheet:C12C936101

Connectivity:

USB Interface:USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n)Memory:1GB + 8GB^*3USB Direct:PDF ^*1, TIFF, JPEGPrinter Languages :ESC/P raster, HP-GL/2HP RTLWi-Fi Direct:Wi-Fi Direct (Simple AP)Control Panel:4.3” Touch Screen

Operating System Requirements:

Operating System:Windows XP SP3 or later / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 Mac OS X 10.6.8 or later
