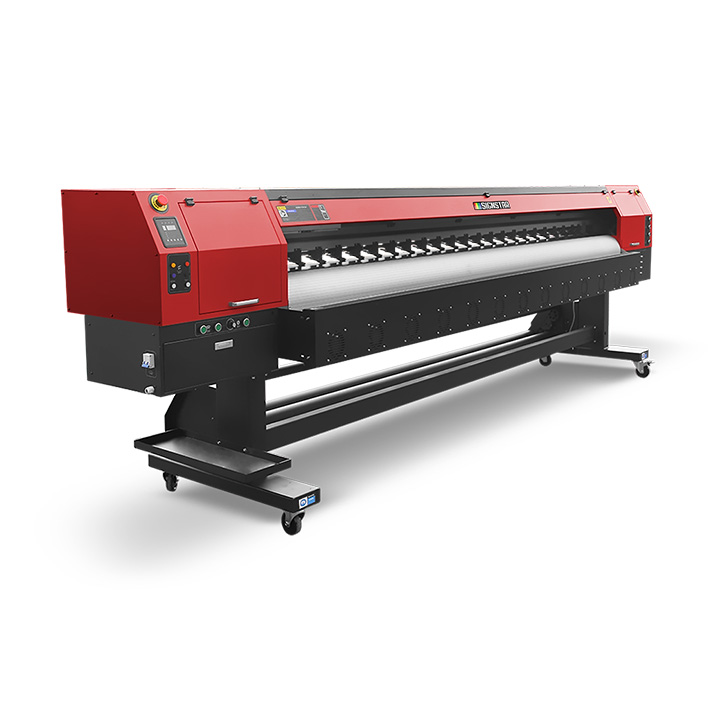

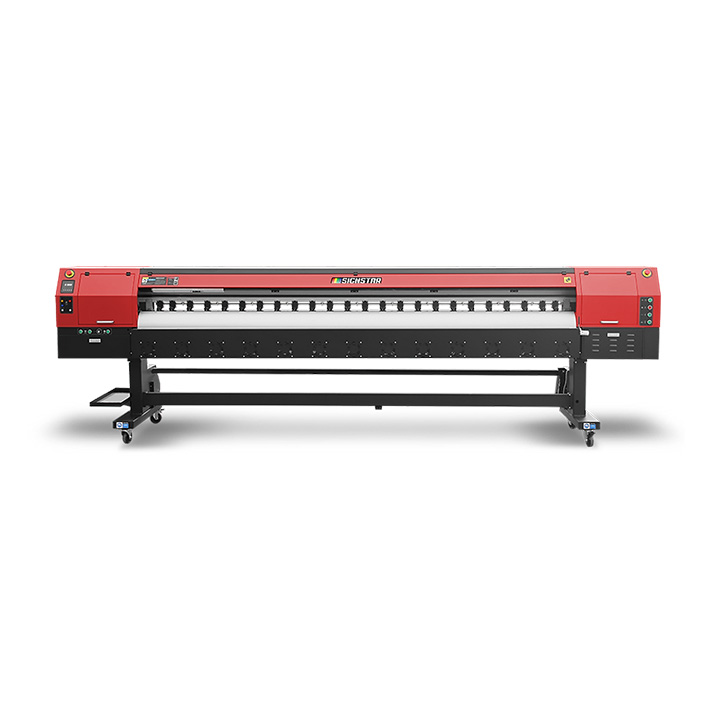

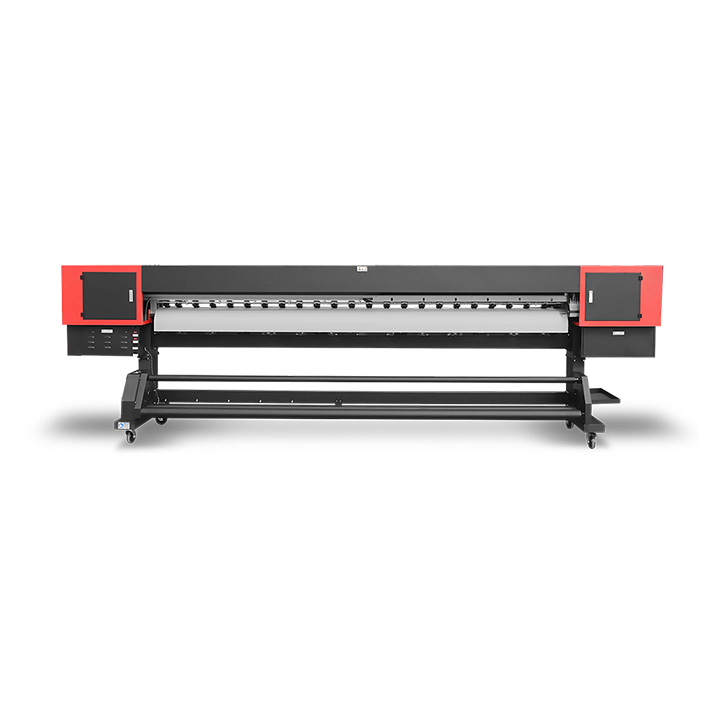

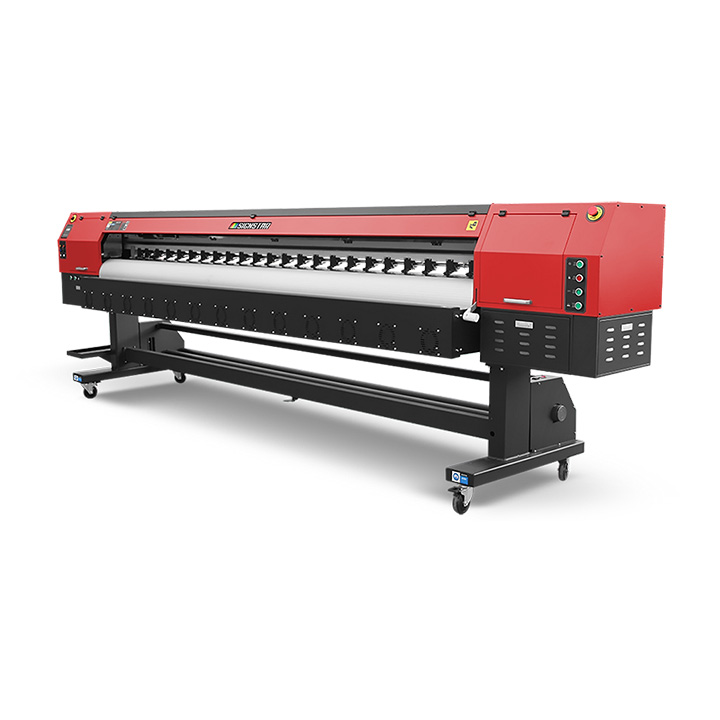

Signstar Y4
- Integral machine body
- High quality 145mm wide printing bed
- Sub – tank heating system for low temperature
- Double mode feeding system
- LED lights at cleaning position and printing bed
- 4 in 1 heating control system
- Rear-printing bed-front heater
- 3 levels ink tank, high speed printing more stable.
- Printhead solvent cleaning system
- Adjustable vacuum for printing bed
- Lift type carriage
Specifications of Signstar Y4
Product Info
| Model | Y4-512i |
| Print head/quantity | Konica 512i 4 heads |
| Ink type/colors/ droplet | Solvent ink /4 colors/ 30pl |
| Max material/print width | 3.2 /3.2 m |
| Resolution | 360 dpi to 540 dpi |
| Print mode | 3 / 2 pass |
| Nozzle speed | 70 sqm/h to 140 sqm/s |
| Drying system | Cooling fan and infrared |
| Feeding & take-up System | Auto take-up system (optional) & auto media feeding |
| Material | PVC flex banner, vehicle wrap advertising, one way vision |
| Photo file format | PSD/ DWG/ HPG/ HGL/ PLT/ PS/ EPS/ 2GP |
| Printing process | RIP software direct output |
| Cleaning System | Automatic system (Protecting print heads during the night) |
| Print interface | USB |
| Software | Photoprint 12.0 / Ultraprint / Maintop |
| Packing size/weight | W 5.0m x L 0.75m x H 1.15m/850Kg |
