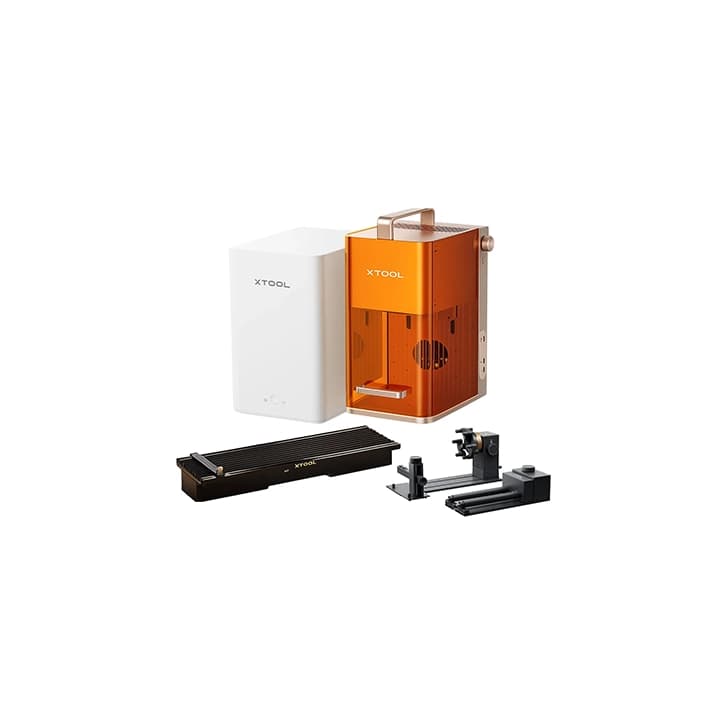

xTool F2 Deluxe Bundle
₱138,950
Key Specifications:
| Dual Laser Power Sources | Equips a 15W Diode laser |
| Galvo-Driven Lightning Speeds | Achieves continuous processing speeds up to 6,000 mm/s |
| 50MP Smart Camera & Live Preview | Offers a high-resolution workspace camera |
| Expanded Working Area | 400mm × 115mm path for continuous batch processing. |
1
General
Device ClassificationDual-source portable galvo laser engraver and cutter.
Laser Sources15W Blue Diode Laser (445nm) + 5W Infrared (IR) Laser (1064nm).
Primary Target UseMobile customization, batch craft production, and industrial-grade marking on metals, wood, plastics, leather, and acrylic.
Bundle Module ExtensionsIncludes the Base Machine, an Automated Slide Extension, a Portable Smoke Air Purifier, an Alignment Bracket, and a Through-Cutting Plate.
Print Specifications (Laser Processing)
Maximum Engraving Speed6,000 mm/s (236.22 inches per second).
Laser Spot SizesDiode Laser: 0.08 mm × 0.06 mm.
Infrared Laser0.03 mm × 0.03 mm.
Max Cutting CapacityCuts up to 15 mm basswood or 12 mm opaque acrylic using multi-pass workflows.
Engraving FeaturesSupports multi-color marking on stainless steel, 3D relief embossment, and curved surface topology mapping.
Scan Specifications (Vision System)
Onboard Sensor Resolution50 Megapixel (50MP) Smart Camera.
Visual Alignment AccuracyDown to ±0.1 mm.
Dual-Dot Overlap SystemManual adjustment wheel aligning distinct red and blue optical dots.
Software AutofocusDriven by intelligent camera calibration via xTool Creative Space.
Workspace MonitoringFull-color, high-refresh-rate live canvas preview for layout drag-and-drop actions
Paper Handling (Working Area & Feed)
Native Work Area115 mm × 115 mm (4.53" × 4.53").
Extended Work Area400 mm × 115 mm (15.75" × 4.53") utilizing the included slide extension table.
Maximum Object Clearance HeightUp to 120 mm (4.72") natively.
Feed & Rotation MechanismCompatible with the RA2 Pro and RA3 Pro multi-axis rotary attachments for handling cylindrical, curved, or spherical media
Connectivity
Wireless ProtocolsWi-Fi (2.4GHz) for untethered wireless data transfers.
Wired ProtocolsHigh-speed USB Type-C, IP network protocol.
Expansion Smart InterfacesDedicated control port supporting standard external multi-axis controllers and foot pedals.
Physical Specifications
Machine Base Footprint175 mm × 237 mm × 334 mm (6.8" × 9.3" × 13.1").
Net Weight4.60 kg (approx. 10.14 lbs), optimizing it for on-site transport.
Input Power Architecture25V 6A adapter block, pulling 150W maximum structural power.
Enclosure TypeIntegrated orange-tinted safety shield providing Class 4 laser eye protection (eliminates structural need for safety goggles)
System Requirements
Software ToolingNative xTool Creative Space (XCS) or third-party vector software LightBurn.
DesktopWindows 10/11 (64-bit) or macOS Big Sur (11.0) and newer.
Mobile EcosystemsiOS, iPadOS, and Android.
Supported Local File FormatsSVG, DXF, JPG, JPEG, PNG, BMP, TIF
The xTool F2 Deluxe Bundle is the comprehensive upgrade to the xTool F1 series, featuring a more powerful 15W diode and 5W IR dual-laser system. This professional-grade portable setup is designed for on-site customization, combining high-speed galvanometer technology with a high-resolution 50MP camera for precise workspace visualization.
