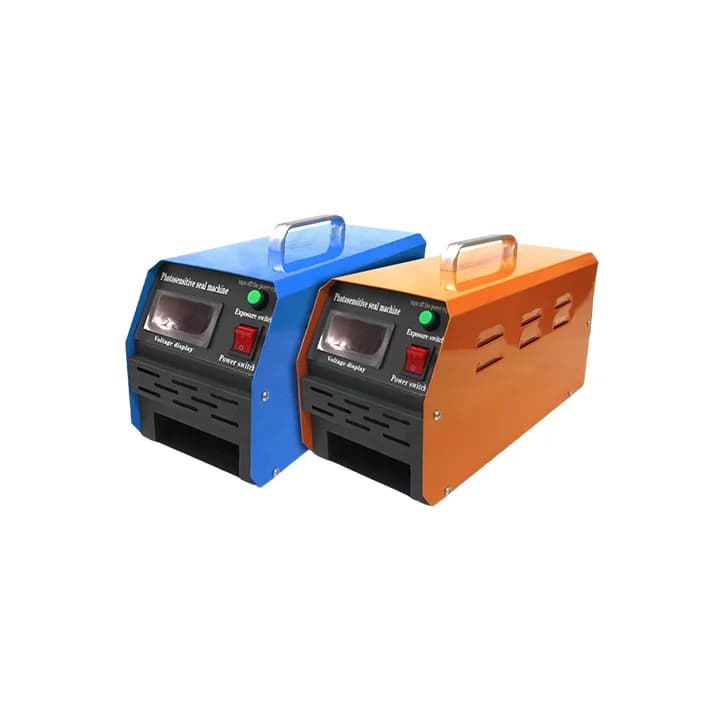

Photosensitive Stamp Making Machine HY2000
₱5,783
Key Specifications:
| Intelligent Digital Setting | Features an easy-to-use digital panel for setting and monitoring the exposure temperature |
| Automatic Protection System | Equipped with a temperature control system that automatically enters a dormant state upon reaching critical temperatures |
| Efficient Exposure Range | Offers an exposure area of 110 x 70 mm |
1
General
Product NameHY2000 Photosensitive Flash Stamp Machine
BrandGeneric / CUYI / Various OEM
Machine CategoryFlash Exposure Unit
Primary UseProduction of pre-inked (flash) stamps for office and business use.
MechanismHigh-output flash tube exposure.
Print Specifications
Exposure Area110mm x 70mm (Standard for most common stamp sizes).
Exposure EnergyUsually between 600J to 800J.
Flash Tubes2 or 3 high-quality quartz tubes (depending on the specific batch).
Life CycleApprox. 50,000+ flashes before tube replacement is needed.
Stamp QualityCapable of 1200 DPI resolution (limited by your laser printer’s quality).
Scan Specifications
Scanning CapabilityNot Applicable.
Paper Handling
Required MediaParchment/Tracing Paper: To hold the printed design.
Exposure Film (OHP)To protect the stamp foam from the heat.
Compatible FoamPhotosensitive/Flash foam (usually 4mm or 7mm thickness).
ProcessManual stacking of the foam, film, and printed paper into the exposure drawer.
Connectivity
Data PortsNone.
Control InterfaceBuilt-in digital LED display for voltage and exposure control.
AutomationManual trigger button to initiate the flash once the desired voltage is reached.
Physical Specifications
DimensionsApprox. 38 x 15 x 20 cm.
WeightApprox. 6kg – 8kg.
BuildMetal housing with an optical glass exposure bed.
ColorTypically Light Grey or Black.
System Requirements
Electrical220V / 50-60Hz.
Power ConsumptionApprox. 300W during charging; instantaneous peak during flash.
Required AccessoriesMust be paired with a Laser Printer (Black Toner only). Inkjet printers will not work.
Operating EnvironmentBest used in a room with standard lighting
The HY2000 Photosensitive Flash Stamp Machine is a compact, high-technology tool designed for office or home-based custom stamp production. It simplifies the traditional seal-making process by using flash exposure technology to cure designs from laser-printed layouts directly onto stamp material. The machine is commonly used in photocopy shops, tourism gift centers, and business offices for creating portrait stamps, business card seals, and standard corporate stamps.
